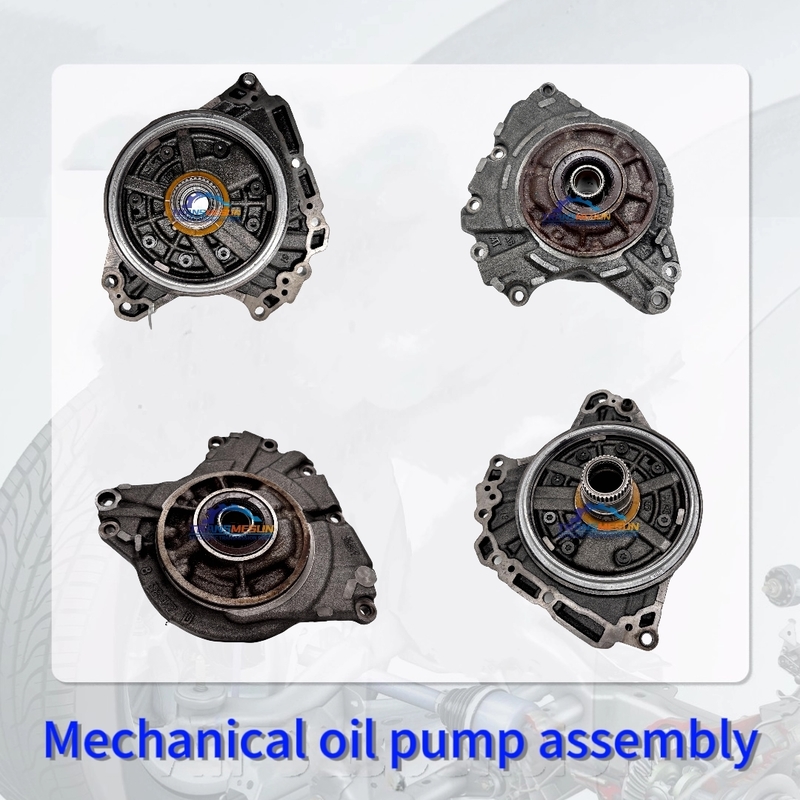

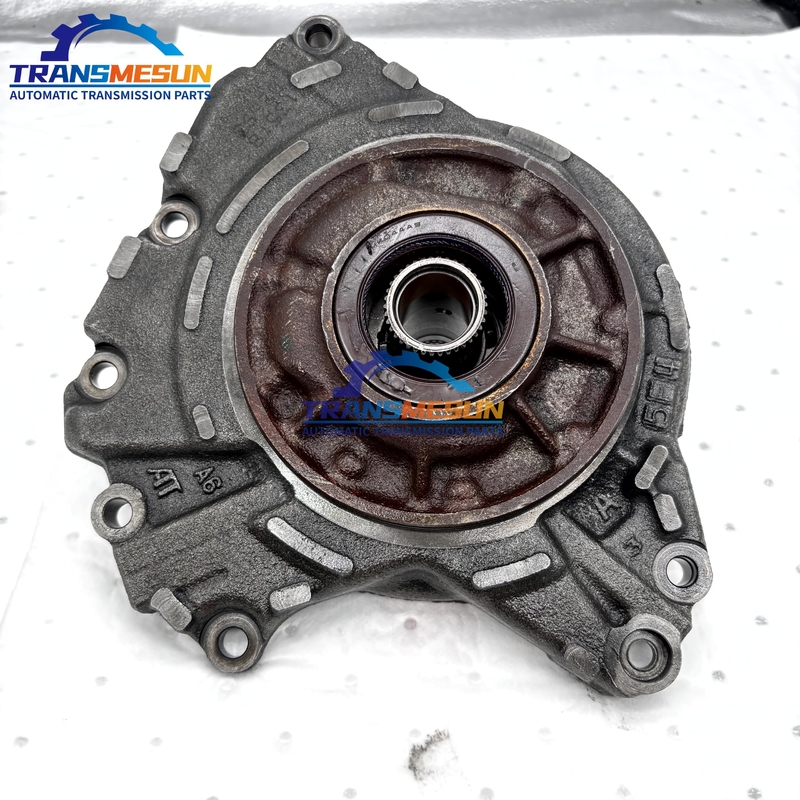

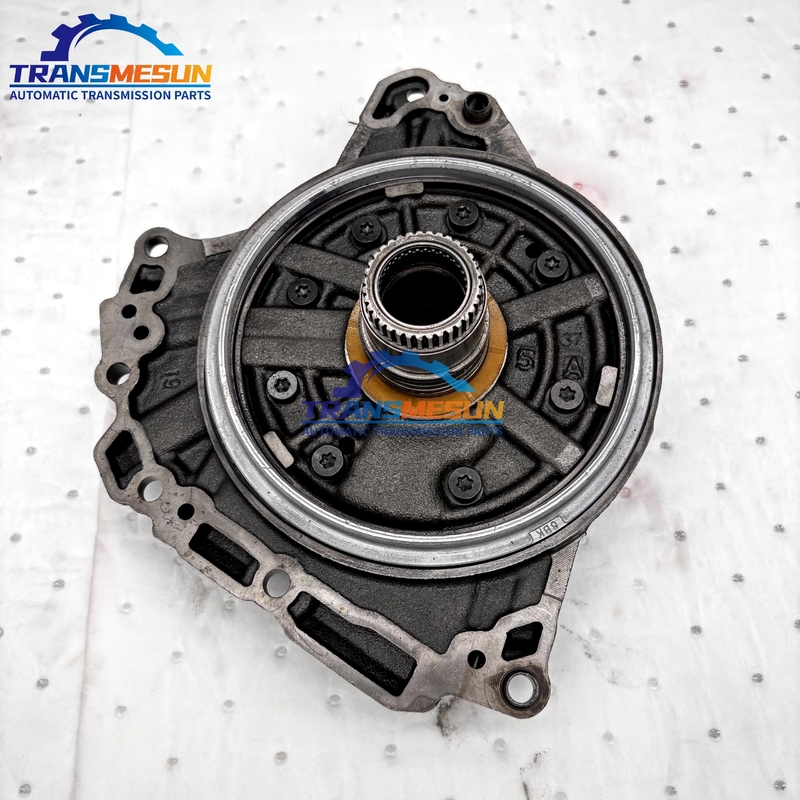

Conjunto de bomba de aceite mecánica de transmisión CVT AWTF60SN GEN1
Resumen del producto
Function: Primary hydraulic pressure source (20–100 psi operational range) for valve body & clutch modulation in Ford/GM 6-speed FWD applications. Design: Rotor-type pump (8+9 lobe design, cast aluminum housing) Integrated pressure relief valve (cracking pressure: 85±5 psi) Key Specs: Flow rate: 12–15 L/min @ 2000 RPM Clearance: 0.03–0.07mm rotor-to-housing (wear >0.15mm causes pressure drop) Failure Modes: Scoring (debris ingestion) Seal leakage (leading to delayed shifts)
Propiedades básicas
Nombre de la Marca:
Volkswagen Passat
Número de modelo:
09G 09M 09K AWTF60SN
Propiedades comerciales
Cantidad mínima de pedido:
1
Precio:
0-1000
Términos de pago:
T/T
Descripción del producto
-
-
Función: Fuente principal de presión hidráulica (rango operativo de 20–100 psi) para la modulación del cuerpo de válvulas y embrague en aplicaciones FWD de 6 velocidades Ford/GM.
-
Diseño:
-
Bomba tipo rotor (diseño de 8+9 lóbulos, carcasa de aluminio fundido)
-
Válvula de alivio de presión integrada (presión de apertura: 85±5 psi)
-
-
Especificaciones clave:
-
Caudal: 12–15 L/min a 2000 RPM
-
Holgura: 0.03–0.07mm rotor-a-carcasa (el desgaste >0.15mm causa caída de presión)
-
-
Modos de fallo:
-
Rayado (ingestión de residuos)
-
Fuga de sellado (que conduce a cambios retardados)
-
Cavitación (bajo nivel de líquido)
-
Nota: Requiere Fluido Mercon LV; elemento de desgaste común después de 150k millas
-
Detalles del producto
Resaltar:
CVT transmission oil pump assembly
,mechanical oil pump for GEN1
,AWTF60SN transmission pump assembly
Year：:
2007-
MODEL：:
09G 09M 09K AWTF60SN
SIZE::
15X15X15CM
Brand：:
Volkswagen Passat
Item Weight::
3.5kg
ＯＥＮＯ:
09G 09M 09K AWTF60SN
Applicable Brand::
Shuttle; Golf; CC. Skoda: Horiseon; Miro; Speedo. Mini: mini
